STL
series ultra-thin compact safety grating is a one-on-one type of
product developed and developed by foreign advanced technology; it is
suitable for two types of frame and can be selected by transistor output
mode, which can perfectly adapt to various automation equipment. It can be connected to PLC or drive relay. The
product has passed the European, CE certification (EN 61000, EN550240),
has strong stability and anti-electromagnetic interference capability,
can completely replace imported regional sensors, such as NA, LC. SAS.

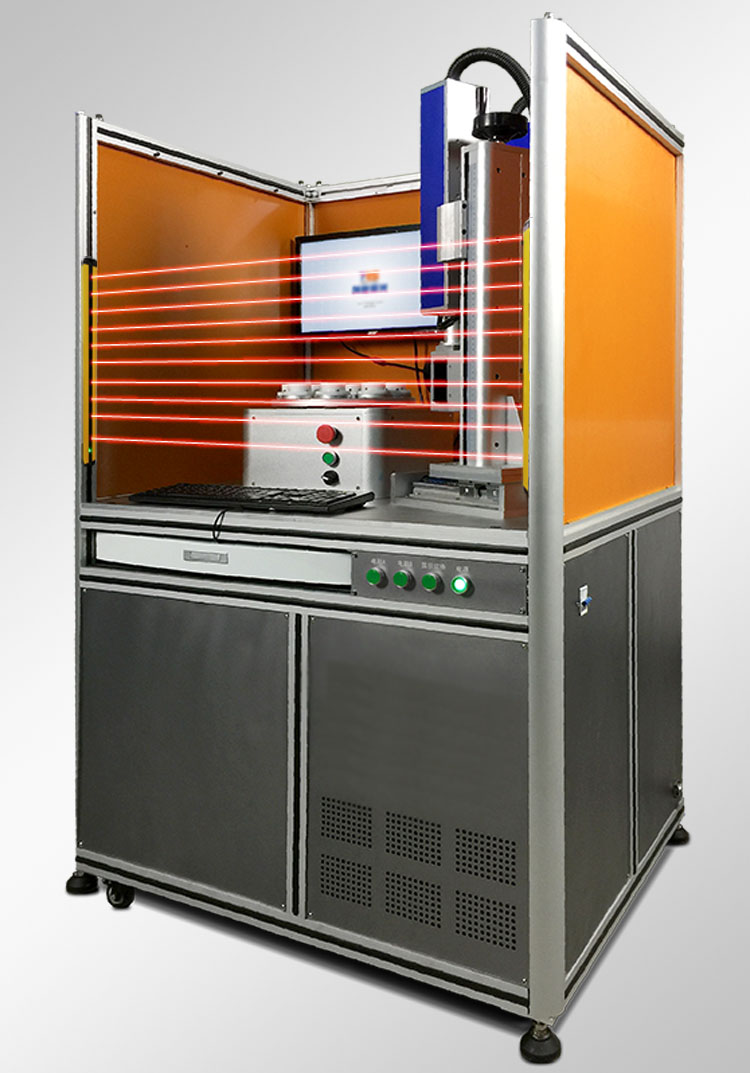

PJV series, etc., has been widely used Test
fixtures, assembly lines, injection molding machines, hot melt machines,
laminating machines, non-standard automation, etc. to detect less
dangerous equipment.
This product has the following characteristics:
※Excellent process design, small size, cross-section size is only 14*29mm.
※Direct outlets simplify wiring, reduce the risk of disconnection, and shorten the running detection time
※Ultra-thin appearance, flexible, small footprint, smaller blind space for the same protection space
※ Adopting optical synchronization design, it has strong anti-electromagnetic interference capability.

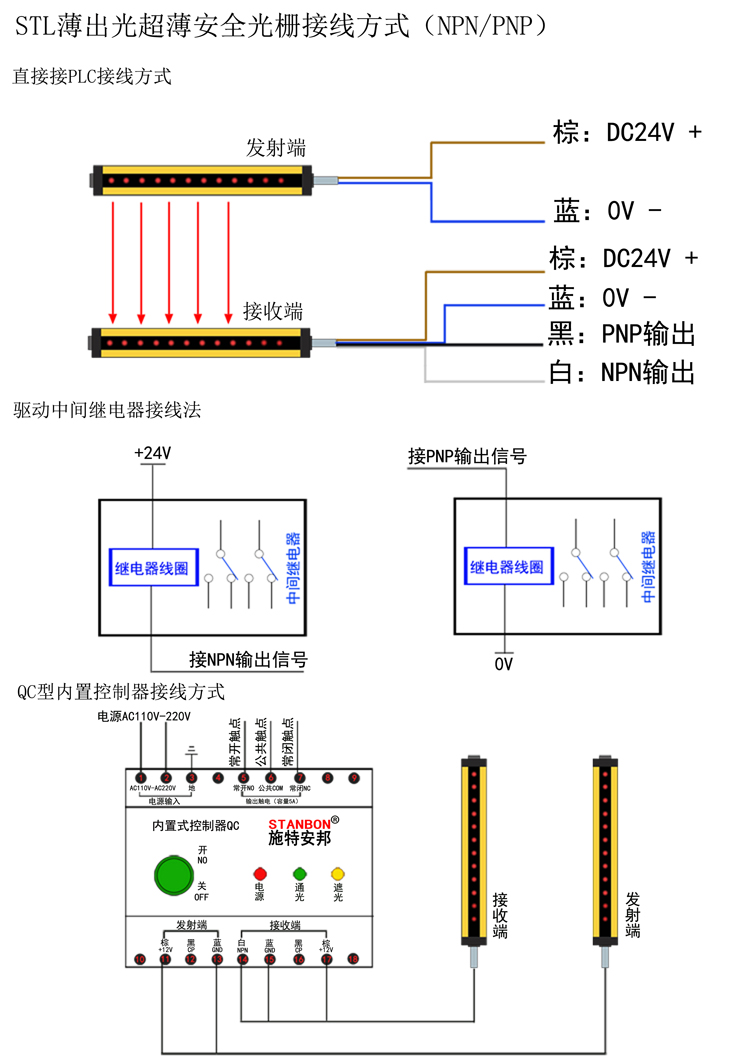

※The transmitting and receiving units can be powered independently and the wiring is convenient.
※With NPN/PNP dual output signal line.
Shenzhen Shite Anbang Technology Co., Ltd. | STL optical synchronization series grating model specification list | Thin light |
Optical axis spacing | Product number | Number of optical axes | Protection height(mm) H | Height of form(mm) H1 | | output method | Dimensions | Standard cable(M) |
20mm | STL20-04NC | 4 | 60 | 90 | 0.2-2m
| NPN&PNP
| 17*29*90 | 2.5+2.5 |
STL20-06NC | 6
| 100
| 150
| 14*29*150 | 2.5+2.5 |
STL20-08NC | 8
| 140
| 190
| 14*29*190 | 2.5+2.5 |
STL20-10NC | 10
| 180
| 230
| 14*29*230 | 3+3 |
STL20-12NC | 12
| 220
| 270
| 14*29*270 | 3+3 |
STL20-14NC | 14
| 260
| 310
| 14*29*310 | 3+3 |
STL20-16NC | 16
| 300
| 350
| 14*29*350 | 3+3 |
STL20-18NC | 18
| 340
| 390
| 14*29*390 | 3+3 |
STL20-20NC | 20
| 380
| 430
| 14*29*430 | 3+3 |
STL20-22NC | 22
| 420
| 470
| 14*29*470 | 3+3 |
STL20-24NC | 24
| 460
| 510
| 14*29*510 | 3+3 |
STL20-26NC | 26
| 500
| 550
| 14*29*550 | 3+3 |
STL20-28NC | 28
| 540
| 590
| 14*29*590 | 3+3 |
STL20-30NC | 30
| 580
| 630
| 14*29*630 | 3+3 |
STL20-32NC | 32
| 620
| 670
| 14*29*670 | 3+3 |
......
| ......
| ......
| ......
| .......
| .......
|
STL20-64NC | 64
| 1260
| 1310
| 14*29*1310 | 3+3 |
40mm
| STL40-04NC | 4 | 120 | 180 | 0.2-2m
| NPN&PNP
| 14*29*150 | 3+3 |
STL40-06NC | 6
| 200
| 270
| 14*29*260 | 3+3 |
STL40-08NC | 8
| 280
| 350
| 14*29*340 | 3+3 |
STL40-10NC | 10
| 360
| 430
| 14*29*420 | 3+3 |
STL40-12NC | 12
| 440
| 510
| 14*29*500 | 3+3 |
STL40-14NC | 14
| 520
| 590
| 14*29*580 | 3+3 |
STL40-16NC | 16
| 600
| 670
| 14*29*660 | 3+3 |
STL40-18NC | 18
| 680
| 750
| 14*29*740 | 3+3 |
STL40-20NC | 20
| 760
| 830
| 14*29*820 | 3+3 |
STL40-22NC | 22
| 840
| 910
| 14*29*900 | 3+3 |
STL40-24NC | 24
| 920
| 990
| 14*29*980 | 3+3 |
STL40-26NC | 26
| 1000
| 1070
| 14*29*1060 | 3+3 |
STL40-28NC | 28
| 1080
| 1150
| 14*29*1140 | 3+3 |
STL40-30NC | 30
| 1160
| 1230
| 14*29*1220 | 3+3 |
STL40-32NC | 32
| 1240
| 1310
| 14*29*1300 | 3+3 |
......
| ......
| ......
| .......
| ......
|
|
STL40-64NC | 64
| 2520
| 2590
| 14*29*2580 | 3+3 |
10mm
| STL10-08NC | 8
| 70
| 115
| 0.2-2m
| NPN&PNP
| 14*29*115 | 2.5+2.5 |
STL10-12NC | 12
| 110
| 155
| 14*29*155 | 2.5+2.5 |
STL10-16NC | 16
| 150
| 195
| 14*29*195 | 3+3 |
STL10-20NC | 20
| 190
| 235
| 14*29*235 | 3+3 |
STL10-24NC | 24
| 230
| 275
| 14*29*275 | 3+3 |
STL10-28NC | 28
| 270
| 315
| 14*29*315 | 3+3 |
STL10-32NC | 32
| 310
| 355
| 14*29*355 | 3+3 |
STL10-36NC | 36
| 350
| 395
| 14*29*395 | 3+3 |
STL10-40NC | 40
| 390
| 435
| 14*29*435 | 3+3 |
STL10-44NC | 44
| 430
| 475
| 14*29*475 | 3+3 |
STL10-48NC | 48
| 470
| 515
| 14*29*515 | 3+3 |
STL10-52NC | 52
| 510
| 555
| 14*29*555 | 3+3 |
STL10-56NC | 56
| 550
| 595
| 14*29*595 | 3+3 |
STL10-60NC | 60
| 290
| 635
| 14*29*639 | 3+3 |
....... | ......
| .....
| ......
| .......
| ........
|
STL10-120NC | 120
| 1190
| 1235
| 14*29*1235 | 3+3 |

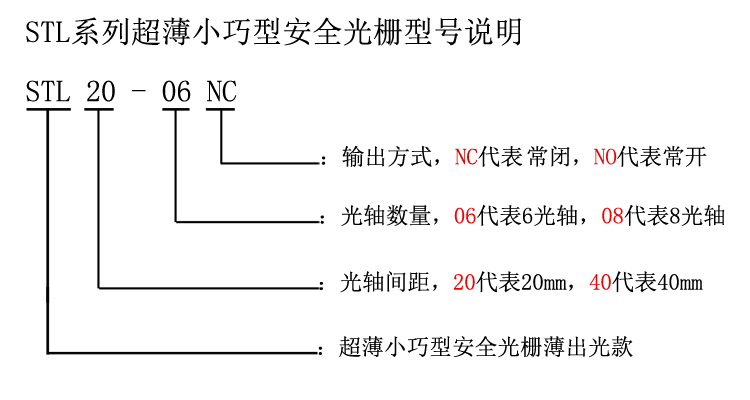

In
the model, STL40-04NC C stands for normally closed, O stands for

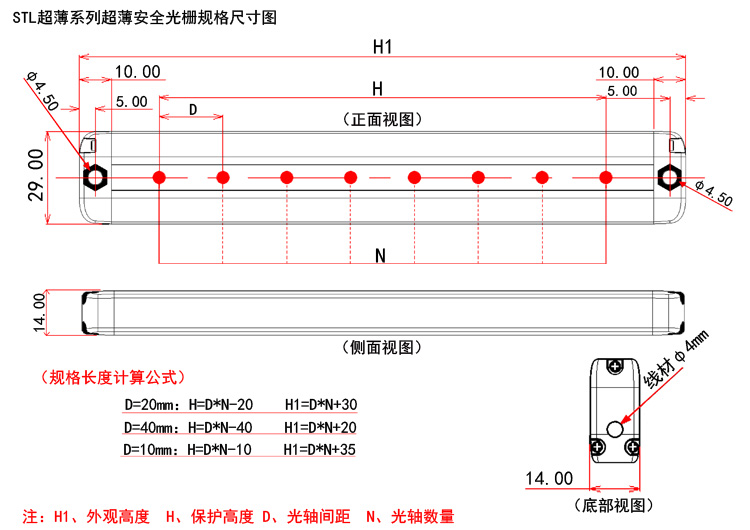

normally open, and the grating has both NPN and PNP output signal lines. The model not marked in the table can be calculated according to the formula in the specification page specification sheet.
