STK series ultra long distance sensing safety grating

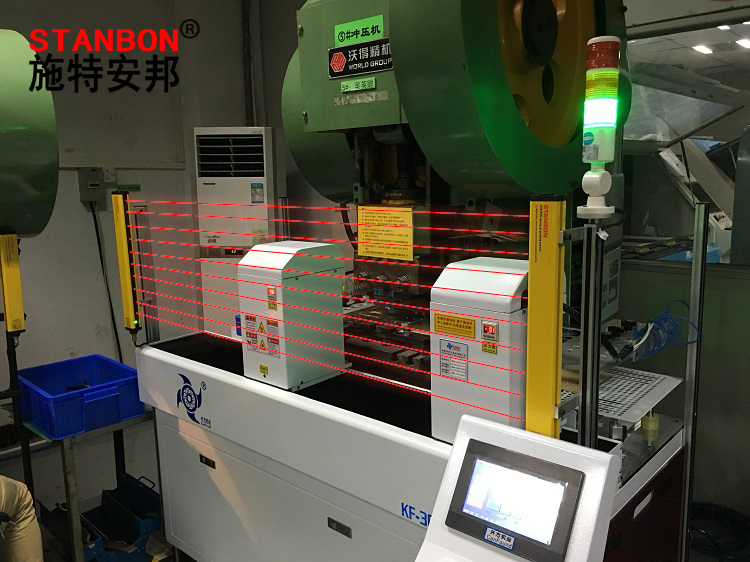

STK series safety gratings are developed and developed by foreign advanced technology. They are mainly for large-scale equipment and long-range use environment. The product has passed the European CE certification (EN 61000-3-2, EN 61000-3-3, EN 550240), has a strong stability, can completely replace the imported safety grating, such as NA, LC, SAS, PJV, SNA series, etc., have been widely used in automated assembly lines, automated forging production lines, large injection molding machines, hydraulic presses, hot melt machines, laminating machines, blow molding machines, pneumatic presses, non-standard automation and other dangerous equipment. The structure has strong seismic performance and can be controlled directly by PLC or by QC controller to control the start and stop of the machine.
This grating has the following characteristics:
※Infrared optical synchronization technology is adopted to support dual-ended discrete power supply and strong anti-electromagnetic interference capability.
※Using imported high-power SMD components and the latest foreign technology, the invalid length of the breeding area is shorter;
※ Periodic scanning of the spot by the CPU; ultra long distance sensing; the distance of the beam can reach 20m.

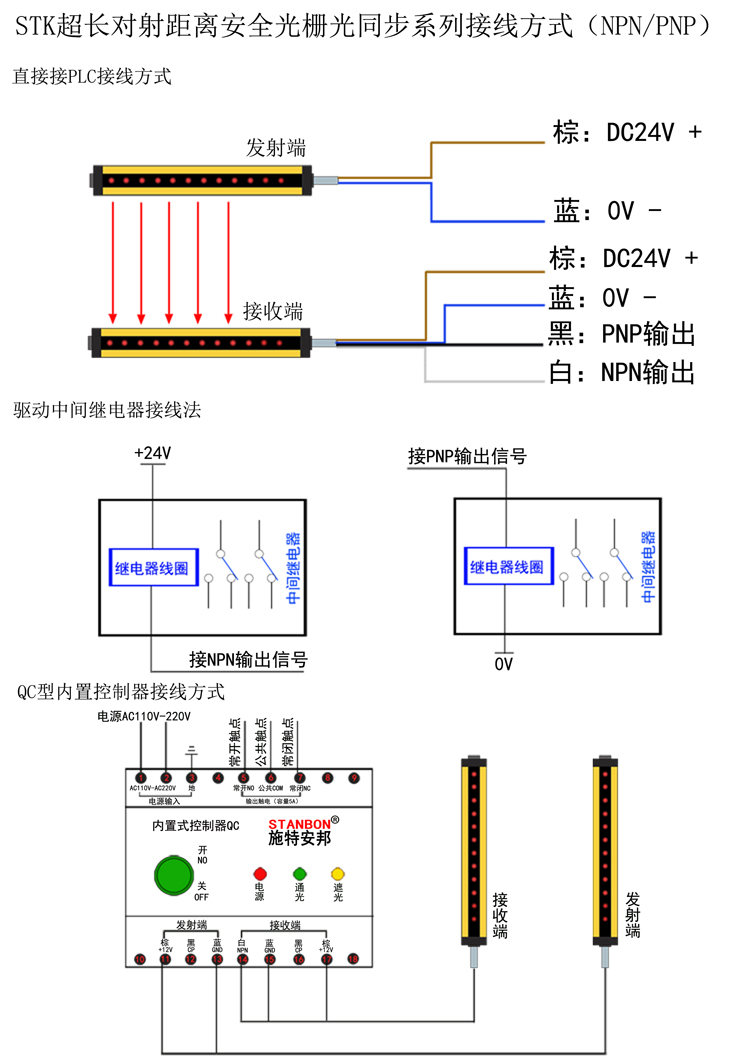

※ Powerful load capacity, output current up to 300mA, simple wiring, configuration of NPN / PNP dual signal interface.
※ With good seismic performance, the components adopt SMT technology and take a number of seismic measures; have good field applicable ability;
※ Optional QC type built-in controller for easy installation and economical.
※ Built-in condenser lens can achieve ultra-long-range radiation, and can resist external light, flash, electric welding and other light interference.

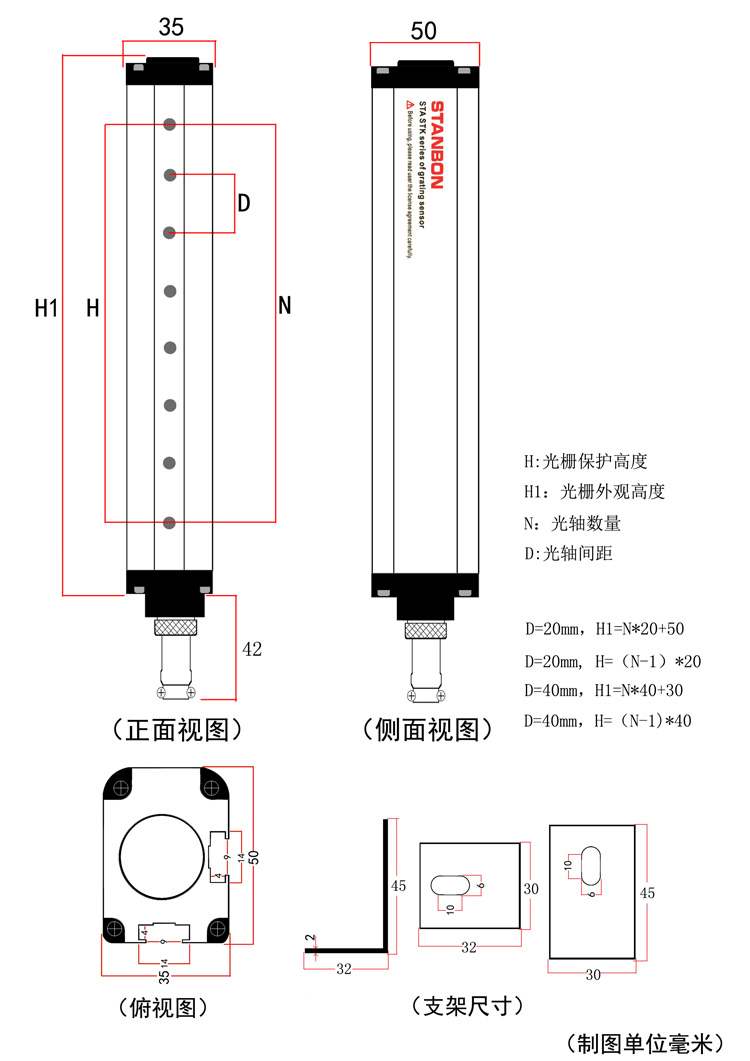

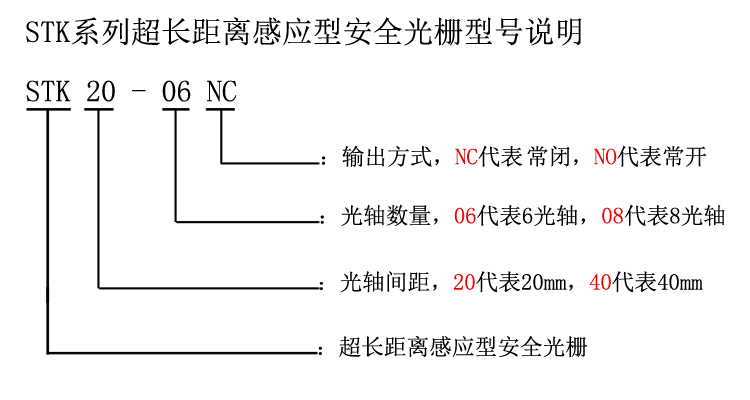

  型号中STK40-06NC NC代表常闭，NO则代表常开，光栅同时具备NPN和PNP输出信号线。表格中未标注型号可根据详情页规格图中公式算出
