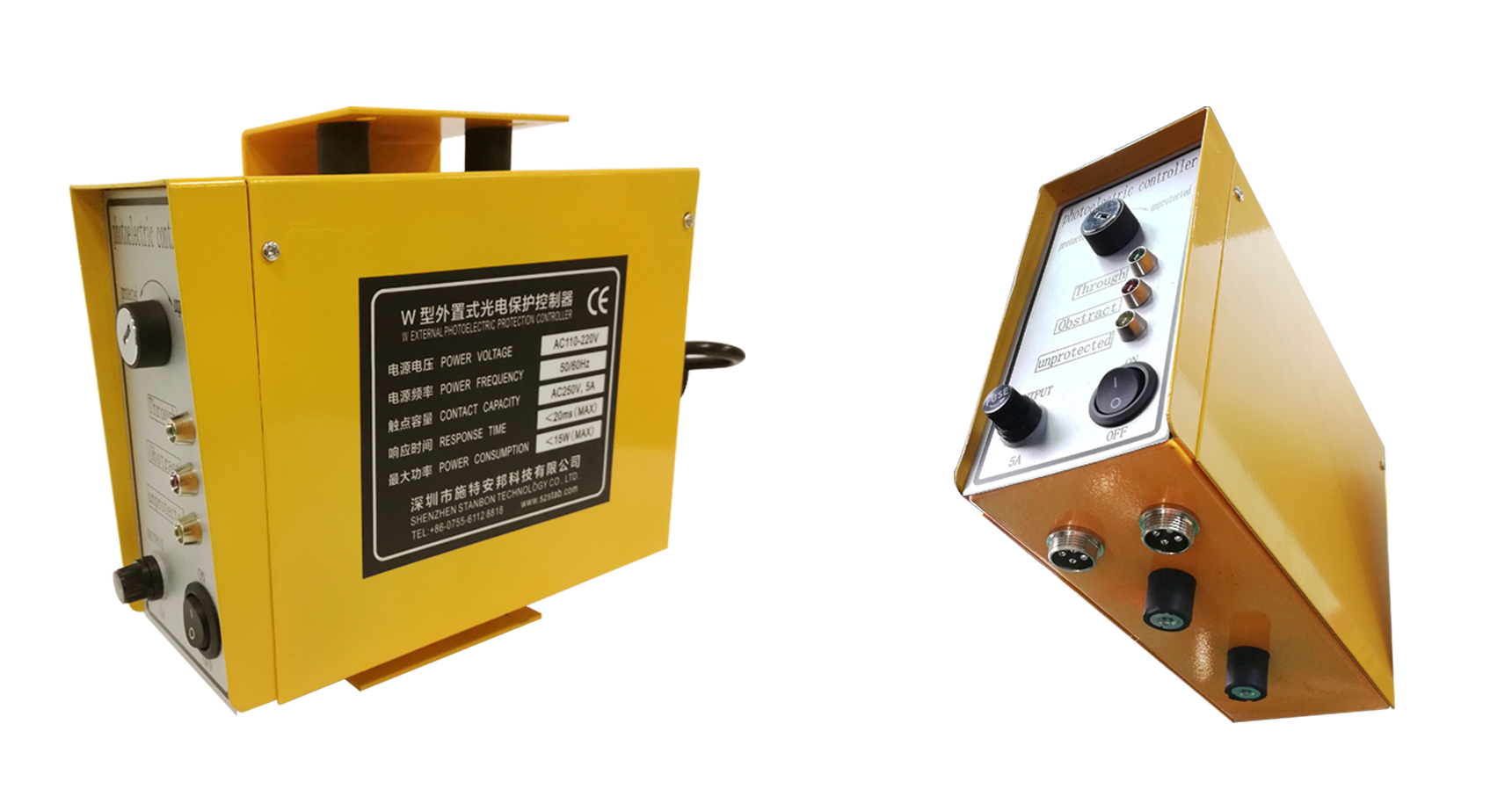

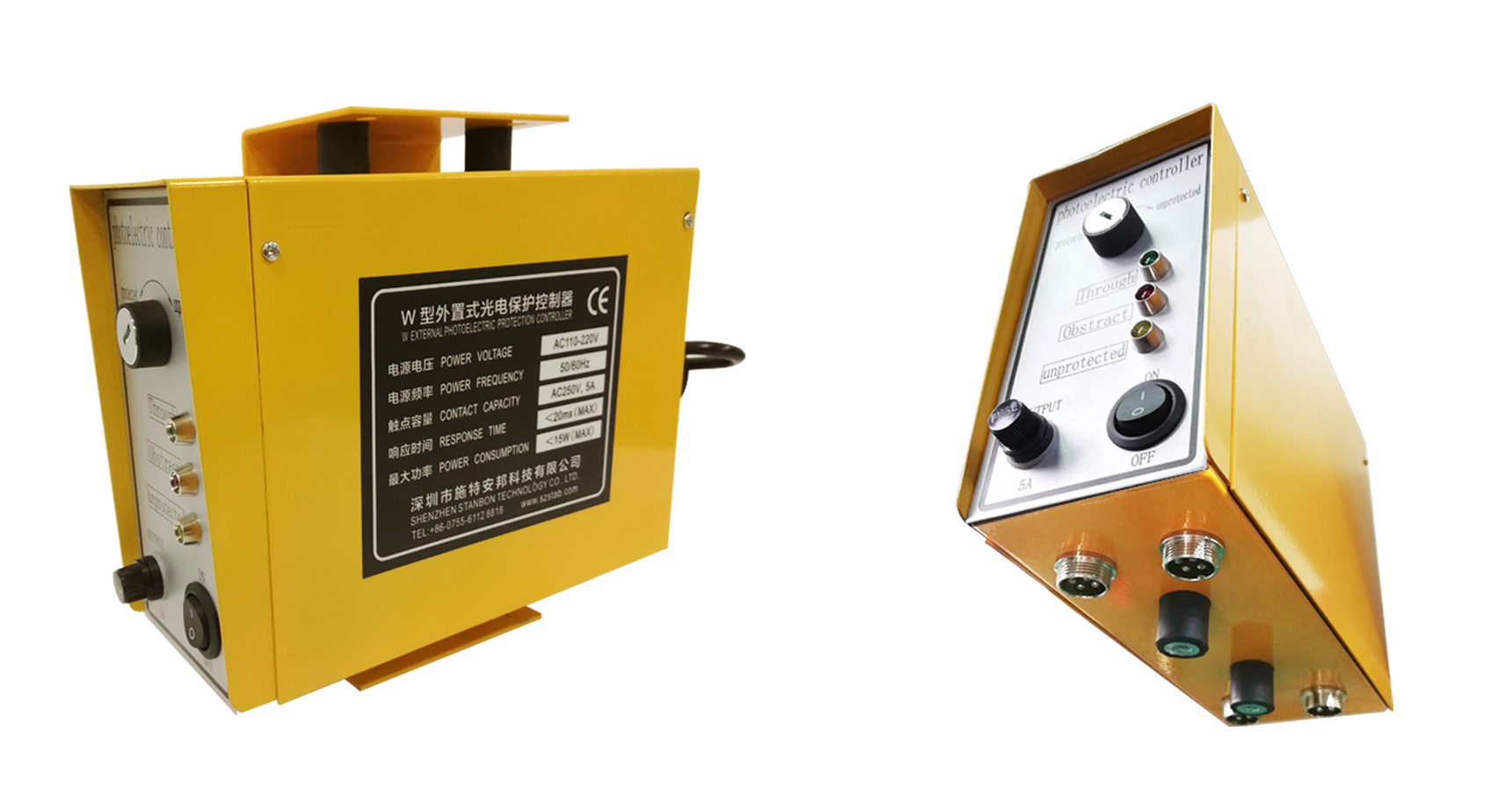

| W type external controller STA
photoelectric protection device is dedicated. The bottom provides a set
of grating interfaces that are rugged, shock and vibration resistant. Can directly load high power. With input insurance, overcurrent protection, Ground protection, providing raster protection / non-protected dual mode switching.
Technical Parameters Power supply voltage: AC110-220V (customizable 380V) Power frequency: 50/60HZ Contact capacity: AC250V, 5A Response time: <20MS(max) Maximum power: <15W (max) Output mode: relay output Safety certification: CE Dimensions: 19.5mm*7.5mm*14.5mm (length, width, height) |
| WS type external controller STA
photoelectric protection device is dedicated. Two sets of grating
interfaces are provided at the bottom for double-sided protection. The
casing is sturdy, shock resistant and vibration resistant. Can directly
load high power. With input insurance, overcurrent protection, Ground protection, providing raster protection / non-protected dual mode switching.
Technical Parameters Power supply voltage: AC110-220V (customizable 380V) Power frequency: 50/60HZ Contact capacity: AC250V, 5A Response time: <20MS(max) Maximum power: <15W (max) Output mode: relay output Safety certification: CE Dimensions: 19.5mm*7.5mm*14.5mm (length, width, height) |

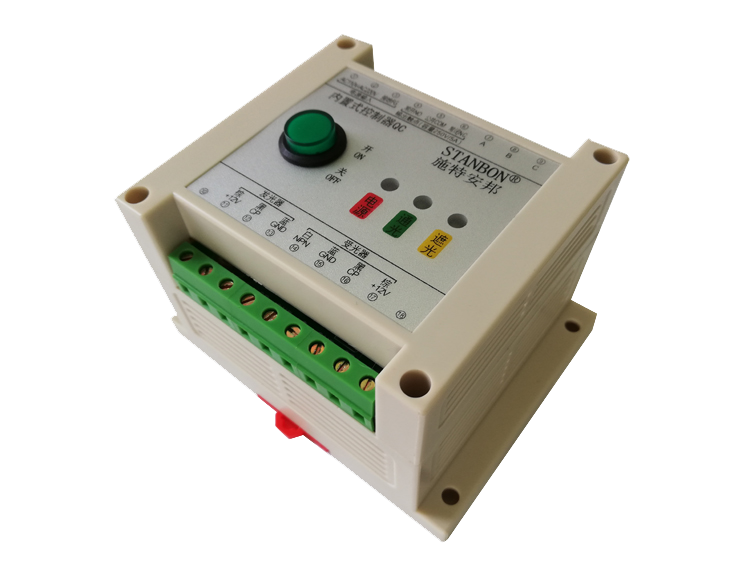

| QC built-in controller
Can be adapted to STD series, STK series, STB series, STG series. It can load AC220V high power voltage and provide DC24V working voltage for the grating. A normally open contact and a normally closed contact are also provided. Achieve control of machine circuit functions. Provide a stable and effective protection system for PLC-free automation equipment.
Technical Parameters Power supply voltage: AC110-220V Power frequency: 50/60HZ Contact capacity: AC250V, 5A Response time: <20MS(max) Maximum power: <15W (max) Output mode: relay output Safety certification: CE Dimensions: 90mm * 115mm * 72mm (length, width, height) |

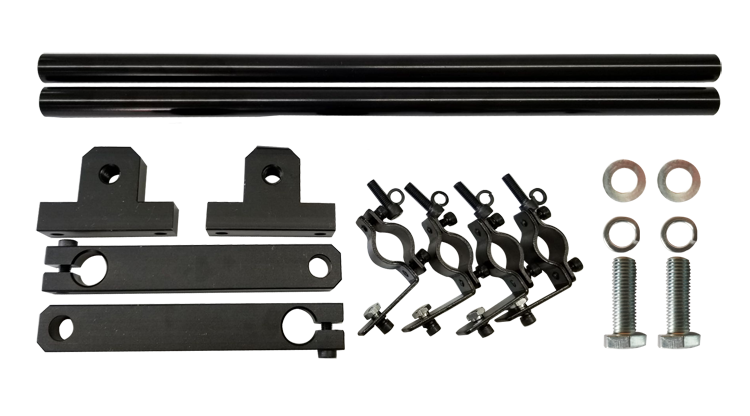

| Steel tube rocker bracket
STA photoelectric protection device comes standard with brackets, and is also suitable for STK, STD, STB, STG and other series. Please refer to the product center STA photoelectric protection device details page for the bracket size details. Steel pipe diameter 22 mm, length 500mm、650mm、750mm 、1000mmoptional |

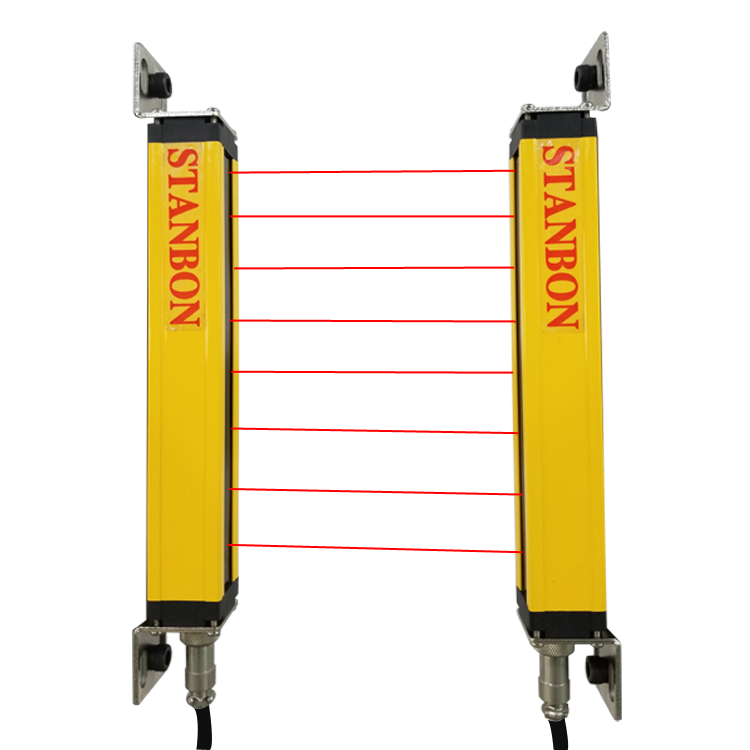

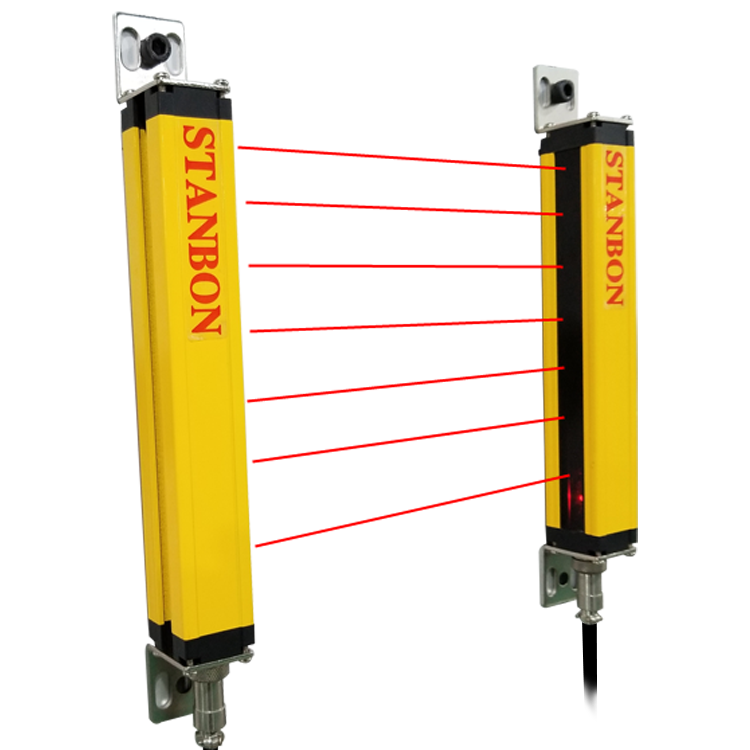

| STD up and down bracket Dedicated
to the STD series of universal safety gratings, it provides a fixed
mounting solution from both ends of the grating and places the grating
inside the machine frame. |
| STD upper and lower side bracket Dedicated
to the STD series of general-purpose safety gratings, it provides a
fixed mounting solution from both ends of the grating and places the
grating outside the machine frame.
|

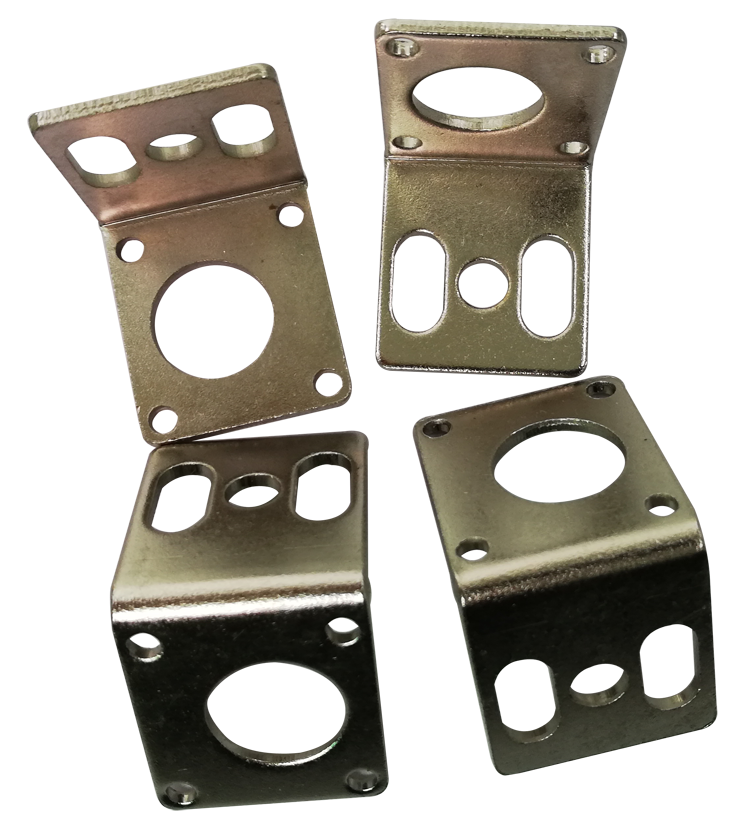

| L-shaped multi-directional metal bracket STG industrial grade safety grating special bracket, can achieve formal, side-mounted, multi-directional conversion. Made of alloy, it is sturdy and durable. Please refer to the STG series industrial grade safety grating details page for detailed specifications. |

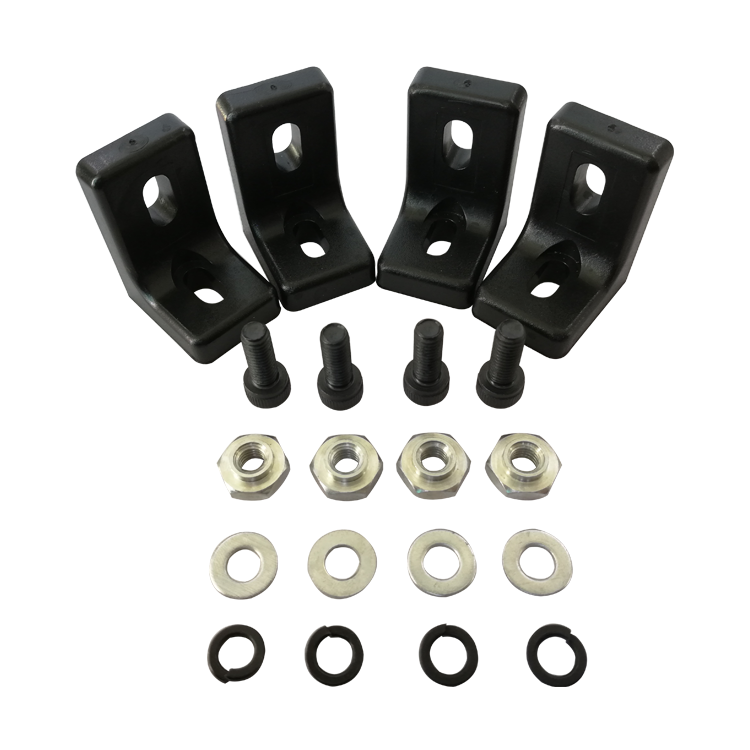

| L-shaped plastic insulation bracket Applicable
to STD series universal safety grating, using ABS plastic material, can
effectively prevent static electricity, leakage, interference to the
grating.
T-screw size is M6*16
|

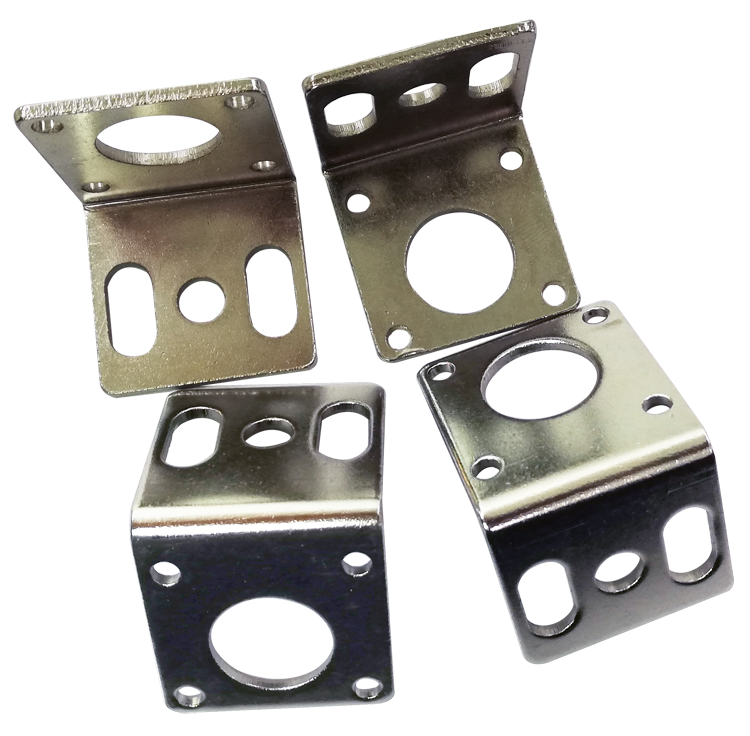

| L-shaped back slot metal bracket Suitable
for STD, STK, STB, STG series. Rugged and easy to install. Compared
with the upper and lower mounting brackets, the space occupied by the
upper and lower ends of the grating can be effectively reduced. T-screws are available in M6*10 and M6*16 sizes.。 |
