STA series photoelectric protection device

Products > STA series photoelectric protection device > STA series photoelectric protection device

STA series photoelectric protection device

The STA series photoelectric protection device is developed and developed by foreign advanced technology. It has high safety and all products have passed the European CE safety certification (EN60950-1, EN55022, EN 61000, EN550240).

STA series of photoelectric protection devices are developed and developed by foreign advanced technology. They have high safety. All products have passed European CE safety certification (EN60950-1, EN55022, EN 61000, EN550240), in line with international standards. The Electrical Engineering Society of the IEC61496-1/2 standard class 4 safety level; STA series photoelectric protection device has a transmitter and receiver, and a controller, which can effectively detect any opaque objects that enter the light curtain area beyond the detection accuracy. Mainly used for forging presses, mechanical presses, pneumatic punching machines, high-speed punching machines, hydraulic presses, hydraulic presses, shearing machines, injection molding machines, presses, creasing machines (slot machines), stretching machines, leather machinery, etc. Mechanical equipment; with the machine control system to control the automatic shutdown function when dangerous conditions are realized.
The STA series has the following features:
※ Self-test function is perfect: When it is faulty, make sure that no error signal is sent to the controlled device.
※ Strong anti-interference ability: pulse signal output mode, good anti-interference ability for electromagnetic signal, stroboscopic light, welding arc, and surrounding light source.
※With main controller: It can directly load high power. Has a shielded grating sensor function.

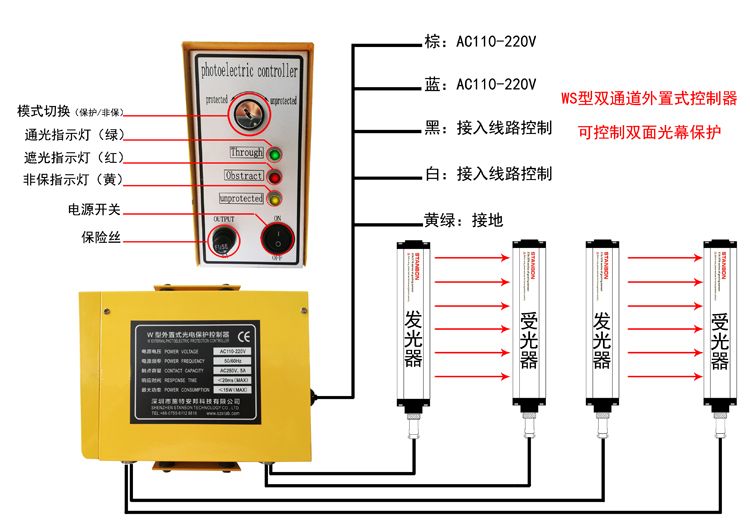

※Easy to install and debug: It is equipped with controller mainframe and all the aviation socket design of the connecting line. The grating sensor is connected with the controller through the aviation socket connecting line, which can be accurately, quickly and easily loaded and unloaded, and the wiring is simpler.
※ Self-fault detection function: Self-test is performed when the power is turned on (within 2 seconds) to confirm the presence or absence of a malfunction. In addition, self-test (reaction time) is periodically performed during normal work.
※Through the European CE safety certification (EN60950-1, EN55022, EN 61000, EN550240), it meets the four safety levels of the International Electrotechnical Institute IEC61496-1/12 standard.
